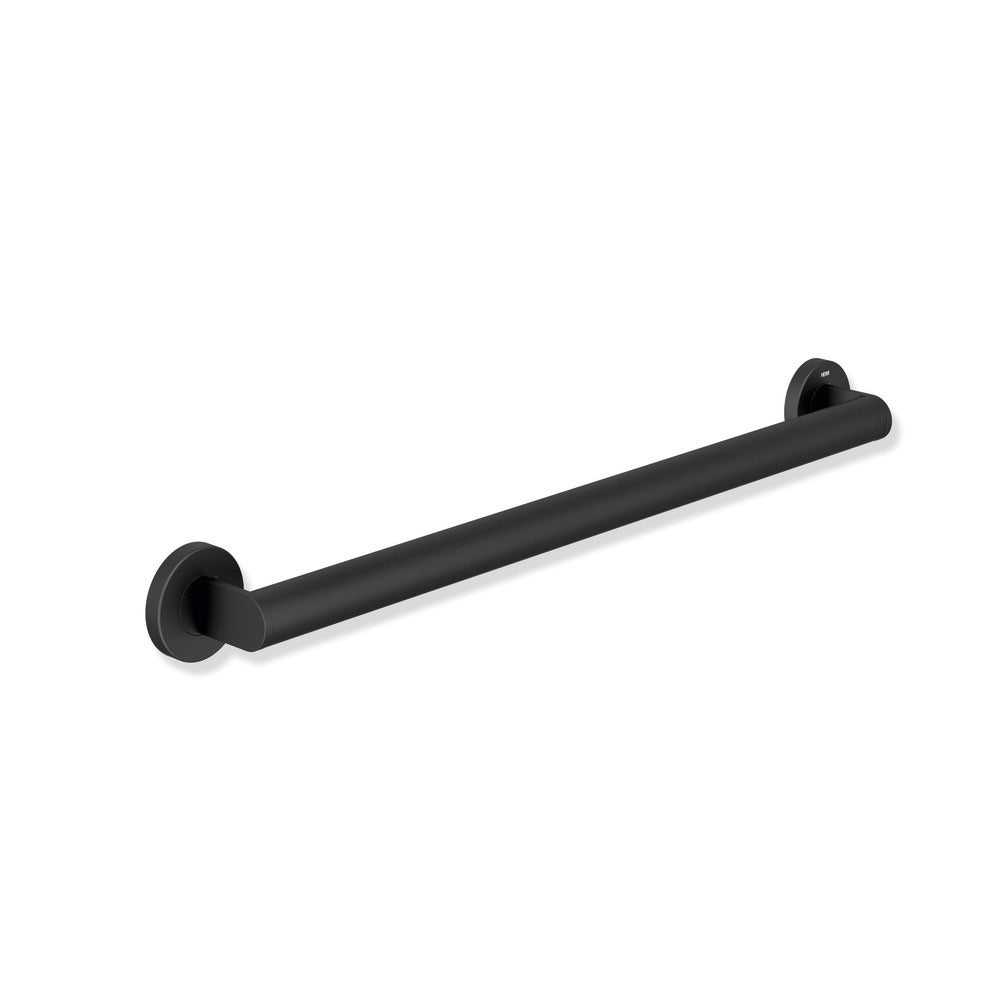

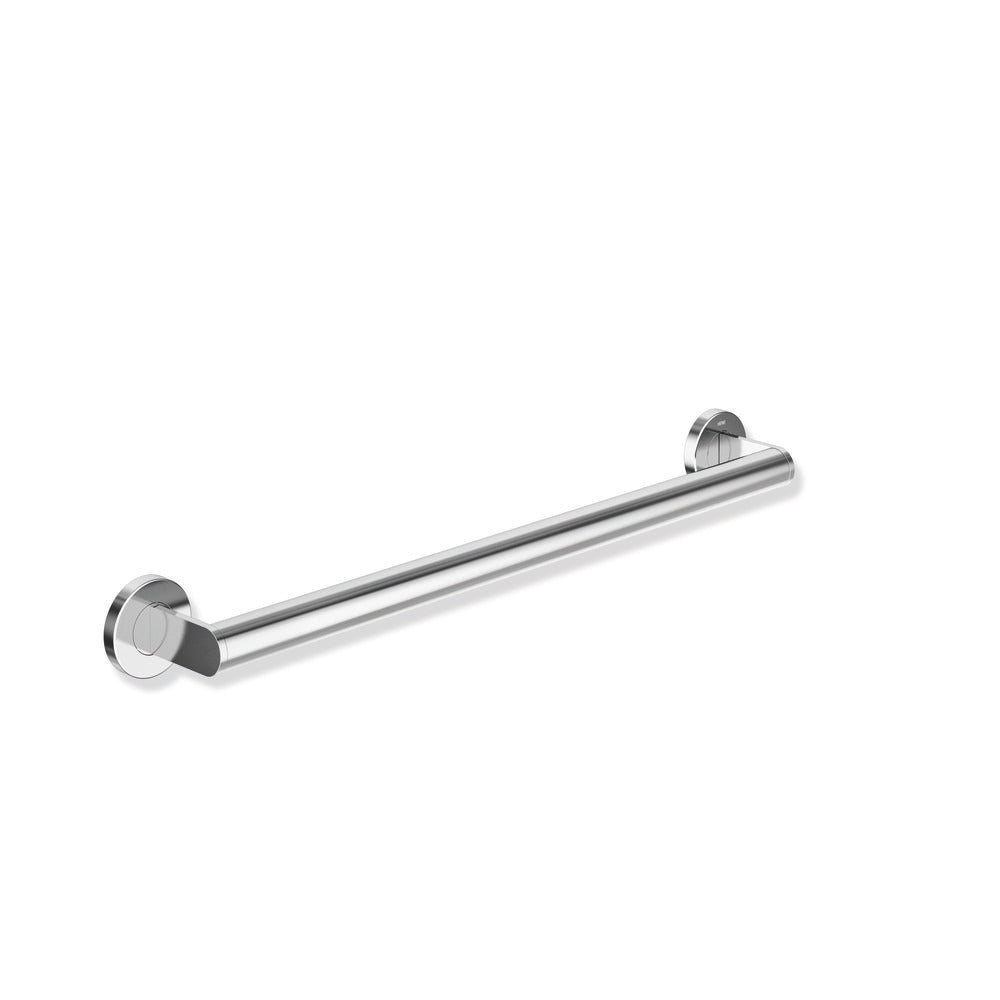

Hewi 900 Grab Bar Support Rail (ADA)

The HEWI 900 Grab Bar Support Rail by Hewi is a stainless steel wall-mounted grab bar with a slim, geometric profile that elevates the look beyond a standard safety rail. Available in four lengths (18", 24", 36", 42") to suit showers, baths, and WCs. ADA-compliant when installed to required dimensions.

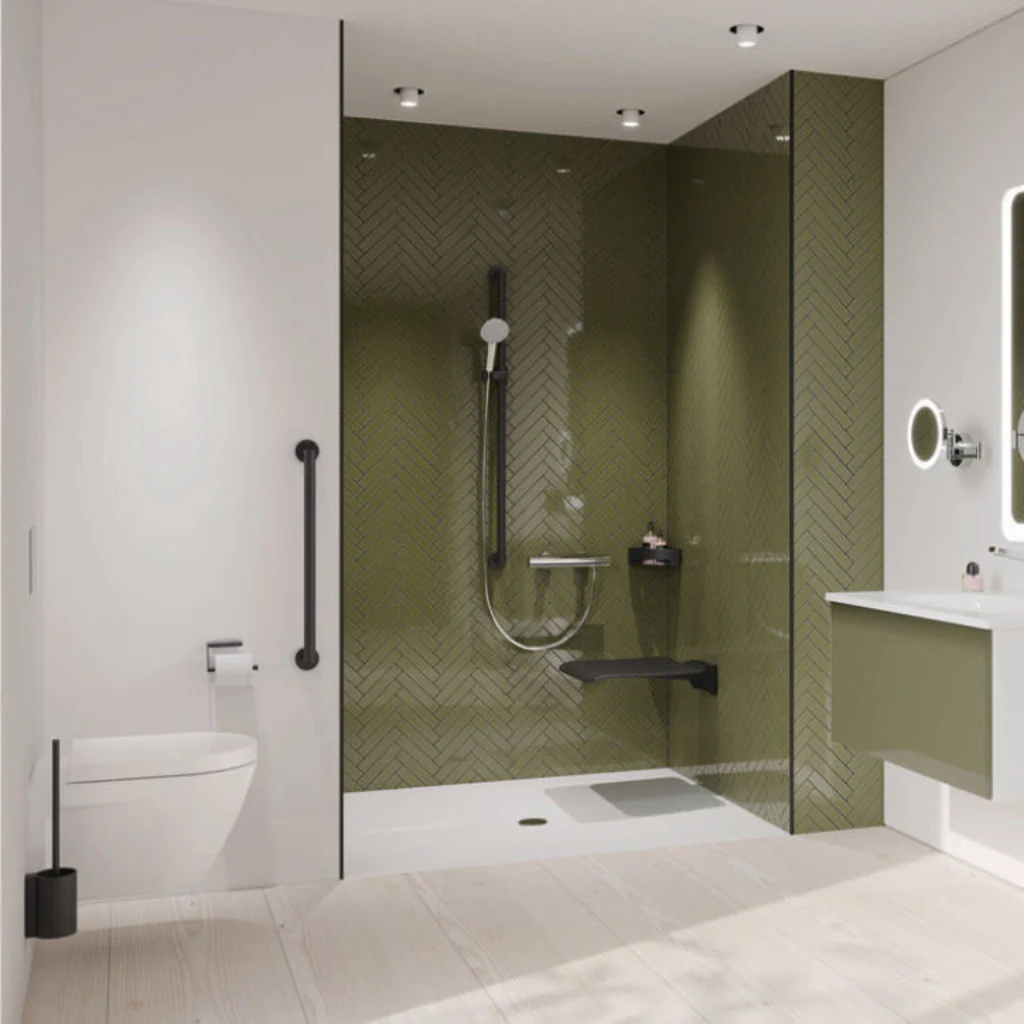

Suited to residential, hospitality, and commercial bathrooms where accessibility meets architectural detailing.

System 900 is a complete, accessibility-focused bathroom program for healthcare, public buildings, hotels, and private homes. It delivers standard-compliant function, durable quality, hygienic design, and smart installation — uniting grab rails, seats, accessories, and comfort elements in one cohesive system. View the entire System 900 collection here.

Specifications

• Shorter Lengths
• 18": L 457 mm (18") × D 70 mm (2 3/4") × Ø 32 mm (1 1/4") · Rose Ø 70 mm (2 3/4")
• 24": L 610 mm (24") × D 70 mm (2 3/4") × Ø 32 mm (1 1/4") · Rose Ø 70 mm (2 3/4")
• Weight capacity: up to 330 lbs (150 kg)
• Longer Lengths
• 36": L 914 mm (36") × D 70 mm (2 3/4") × Ø 32 mm (1 1/4") · Rose Ø 70 mm (2 3/4")
• 42": L 1067 mm (42") × D 70 mm (2 3/4") × Ø 32 mm (1 1/4") · Rose Ø 70 mm (2 3/4")
• Weight capacity: up to 250 lbs (114 kg)

Materials

Solid stainless steel construction.

Standard Finishes

• Satin Stainless Steel
• Chrome Plated
• PC Matt Dark Grey
• PC Matte Black
• PC Matte White
• PVD Shiny Brass
• PVD Brushed Brass
• PVD Glossy Black Chrome
• PVD Brushed Nickel

Special Finishes

• Nickel Glossy
• Black Chrome Brushed
• Copper Glossy
• Copper Brushed
• Bronze Glossy
• Gold Glossy
• Gold Brushed

Special finishes require a quote. Contact contact@cassonhardware.com for pricing and lead times.

Product Downloads

For the complete collection, download the catalogue here.

Hewi Colour Chart

Product Sheets

• Hewi Support Rail 18" Product Sheet
• Hewi Support Rail 24" Product Sheet
• Hewi Support Rail 36" Product Sheet
• Hewi Support Rail 42" Product Sheet

Dimensional Cut Sheets

• Hewi Support Rail 18" Cut Sheet
• Hewi Support Rail 24" Cut Sheet
• Hewi Support Rail 36" Cut Sheet
• Hewi Support Rail 42" Cut Sheet

2D CAD Drawings

• 18" 2D Drawing
• 24" 2D Drawing
• 42" 2D Drawing
• 18" 3DF
• 24" 3DF
• 42" 3DF

Installation & Care

Installation Video

• Installation Instructions
• Cleaning And Care Instructions
