Combination Rotary Dimmers and Toggle Switches by Forbes & Lomax

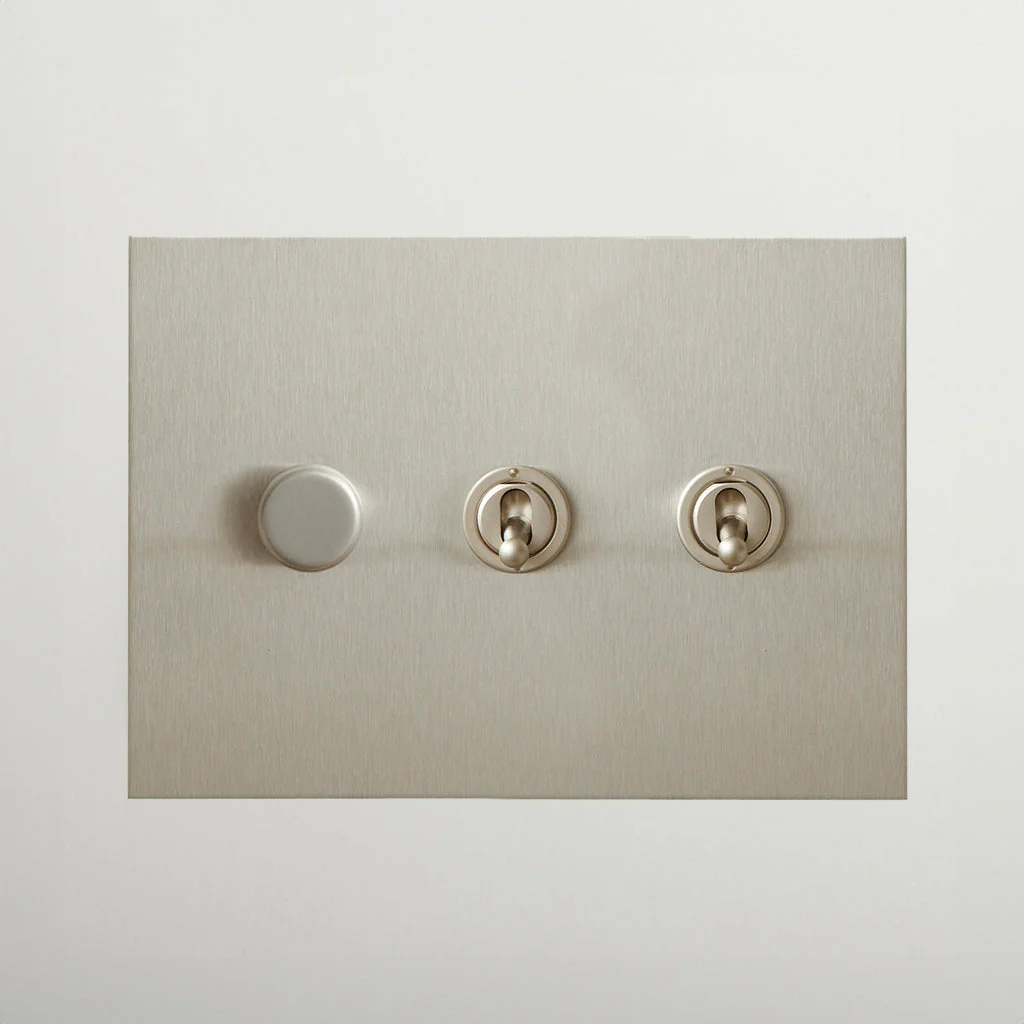

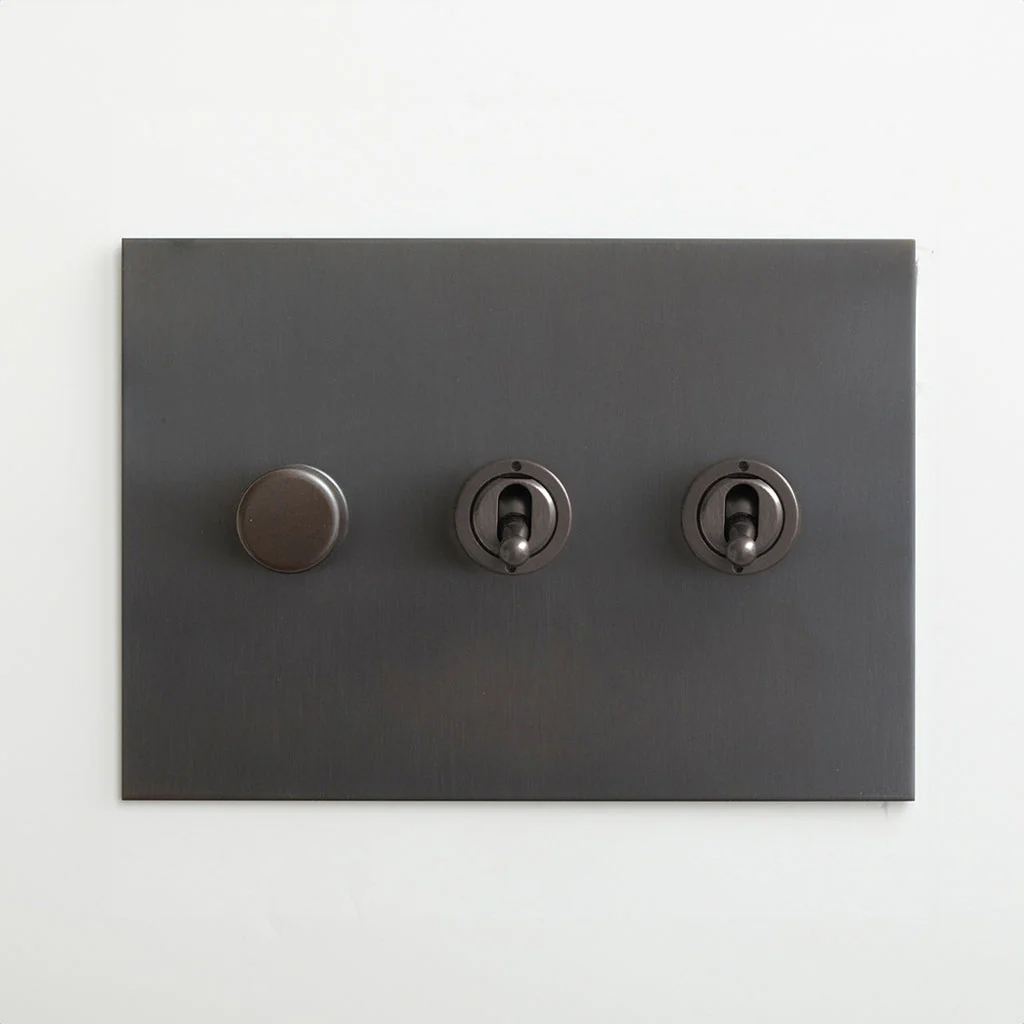

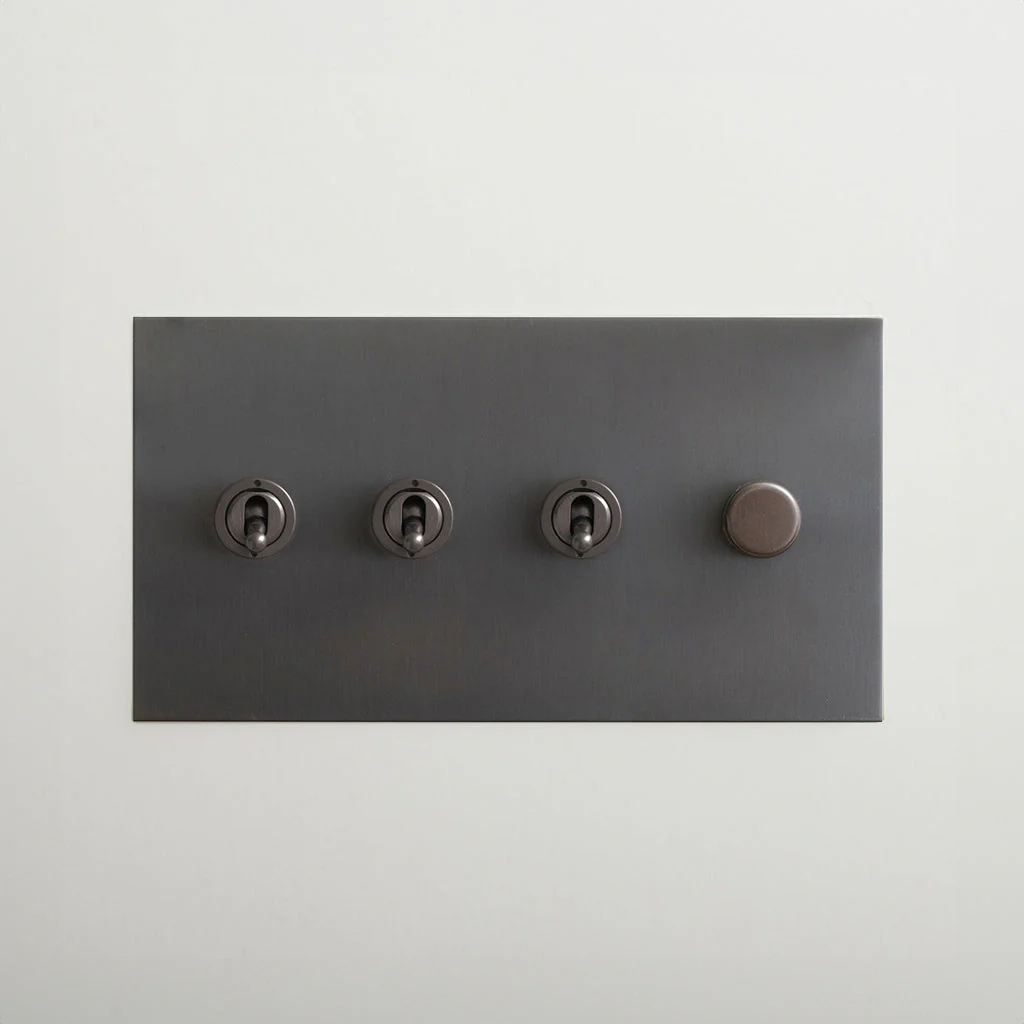

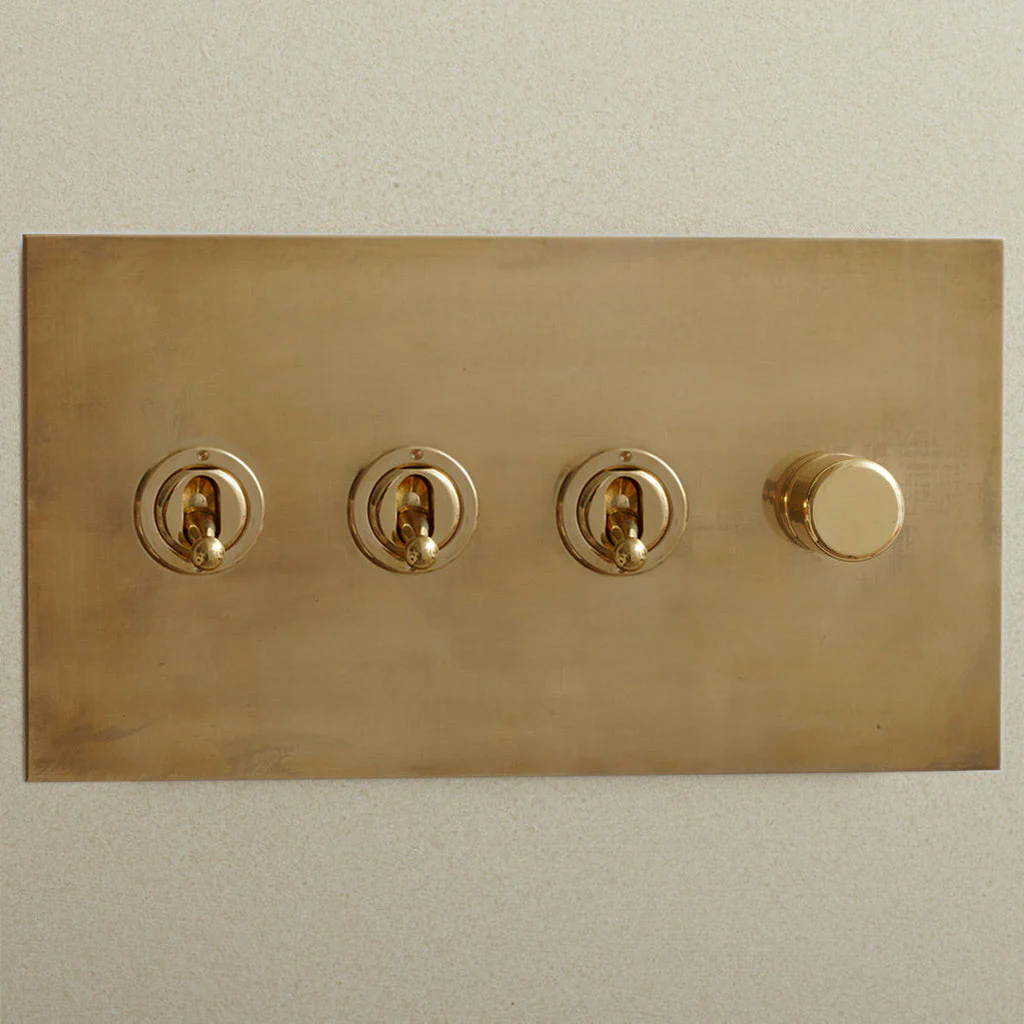

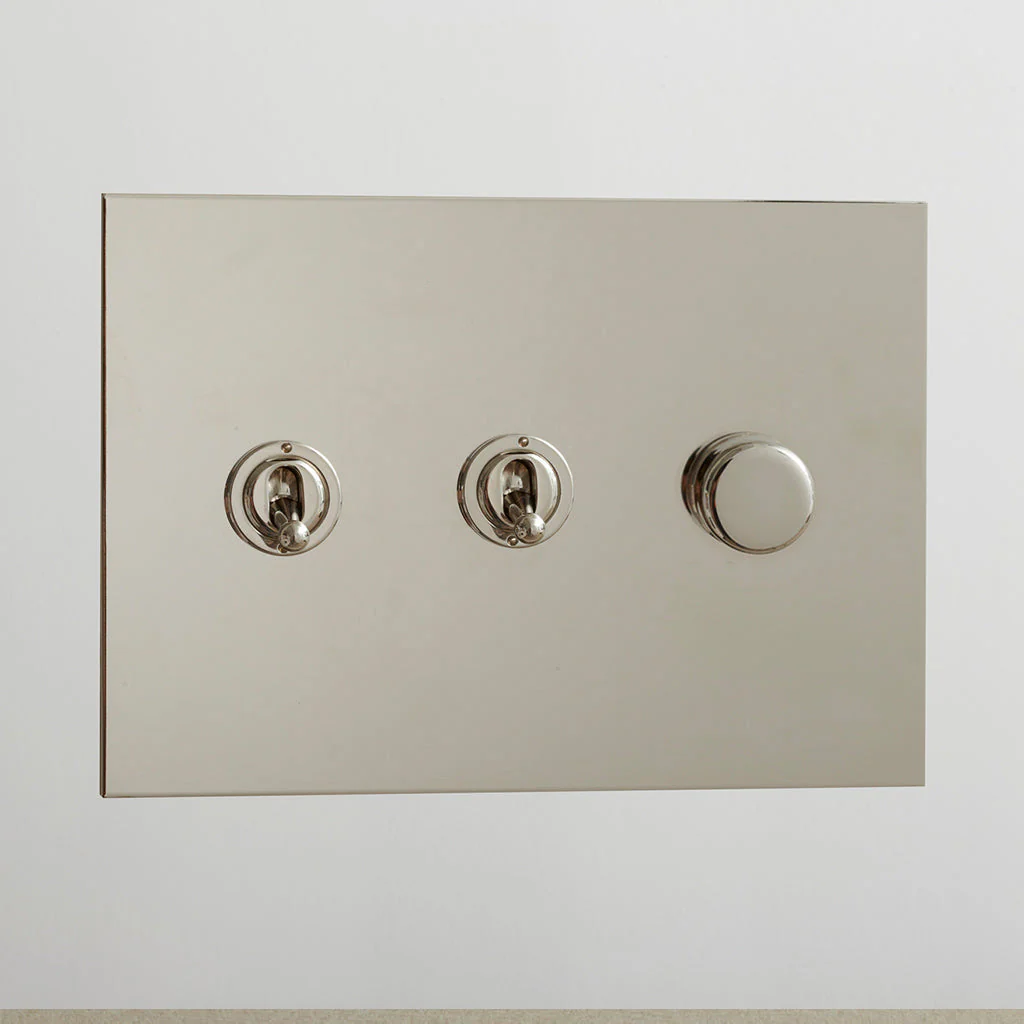

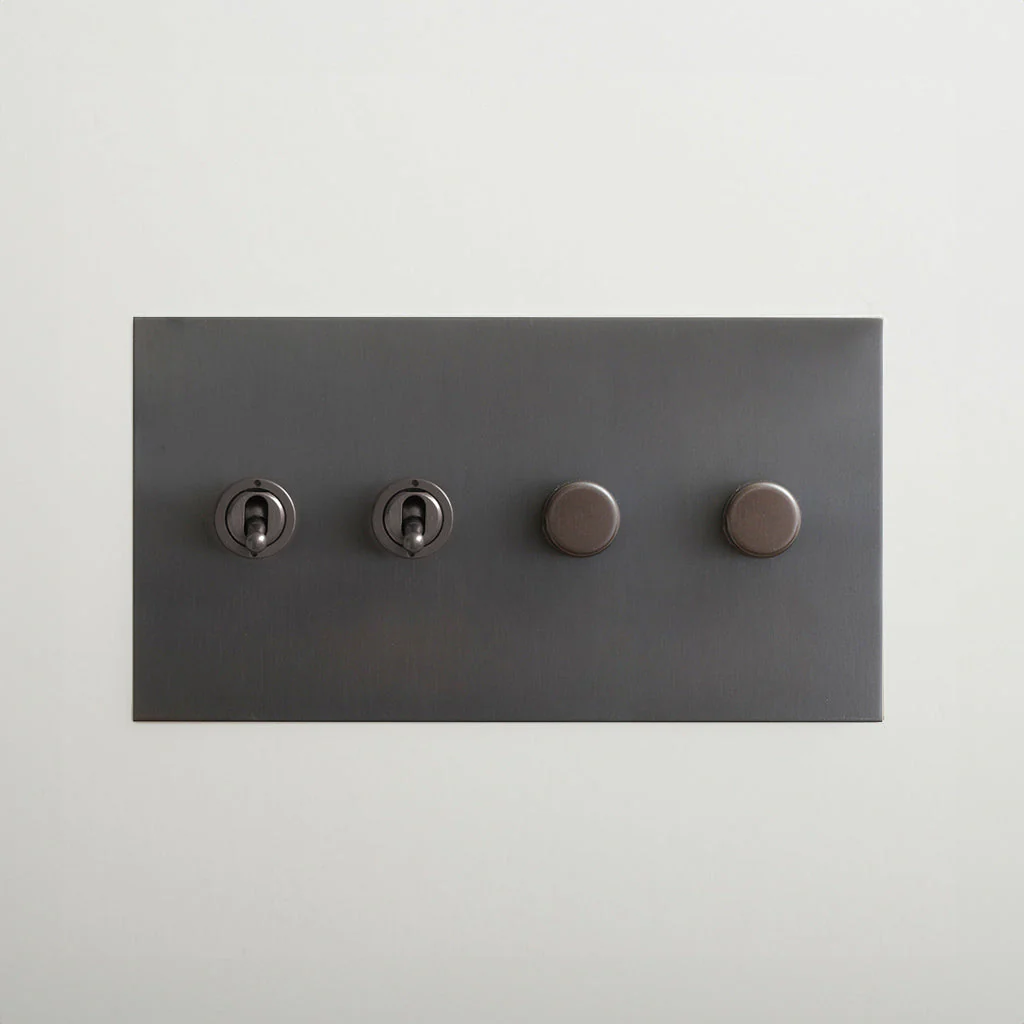

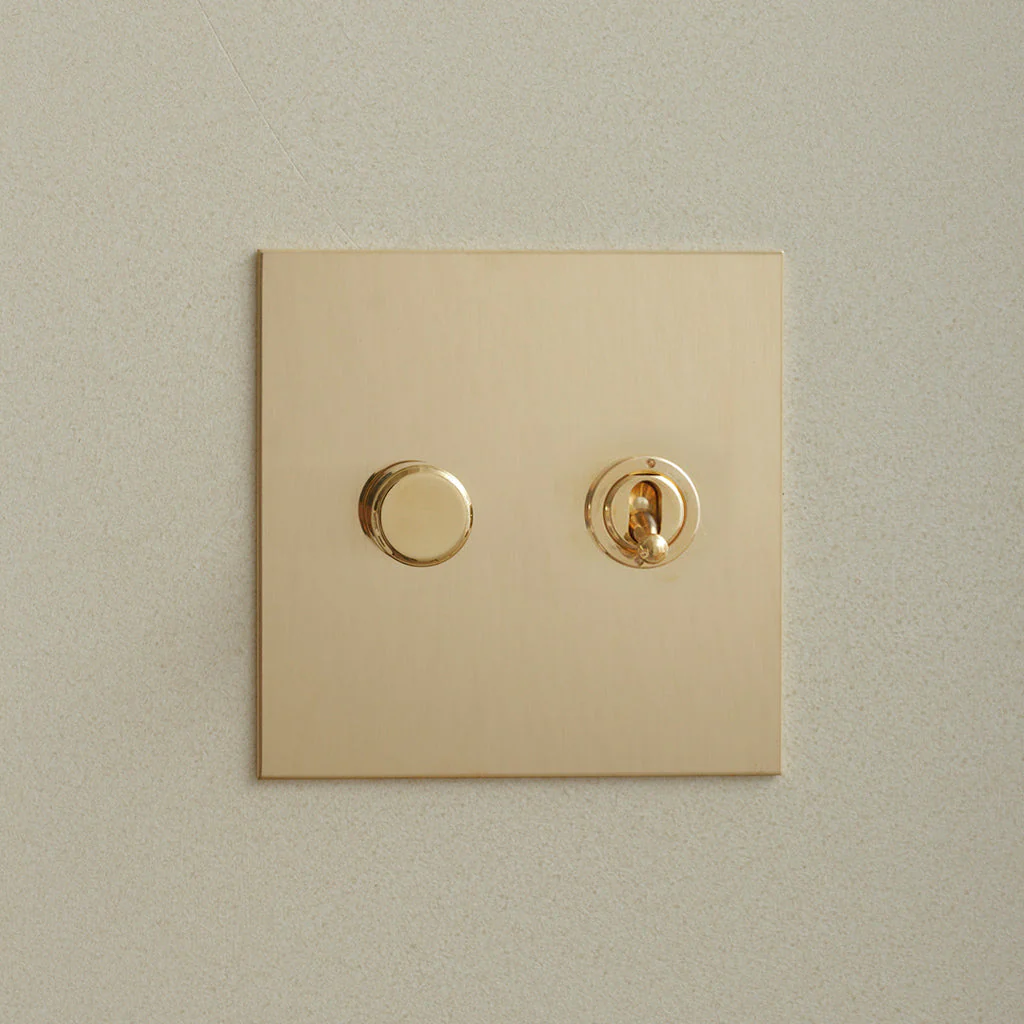

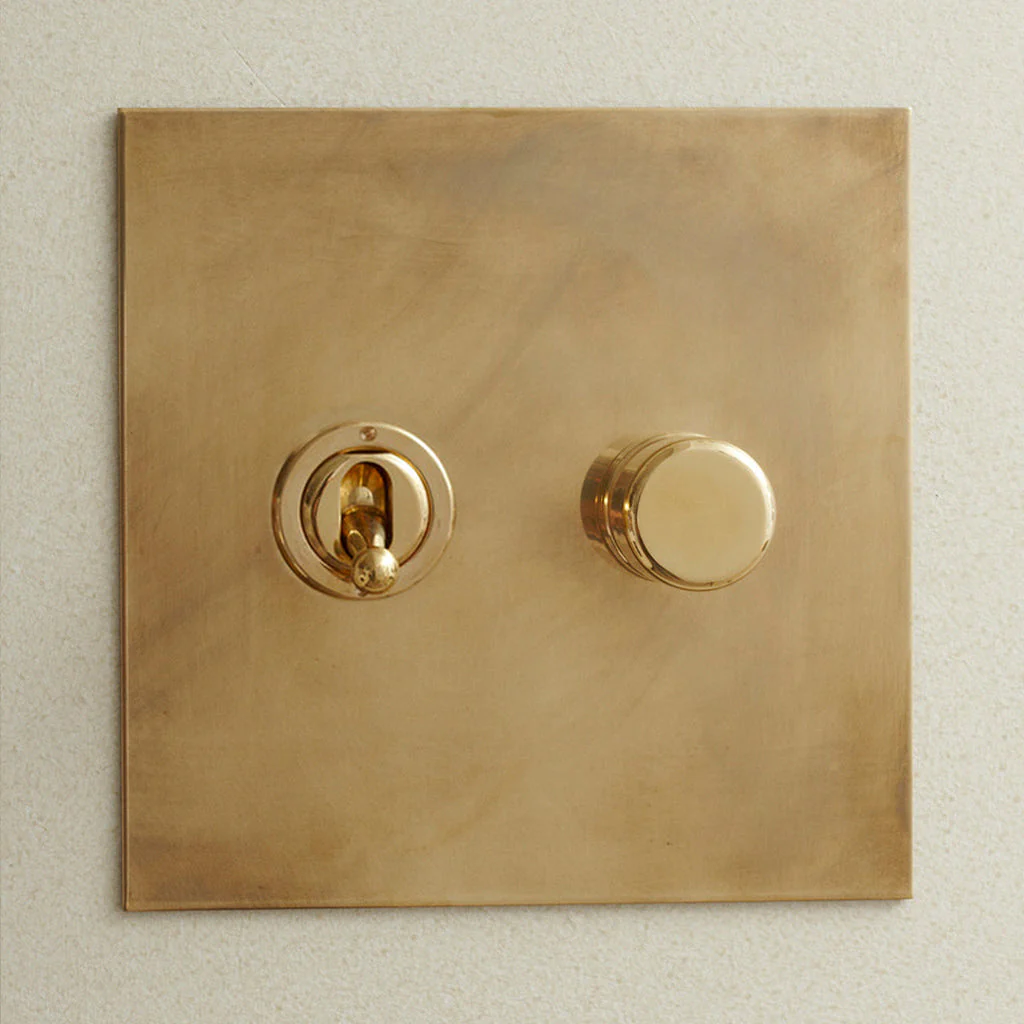

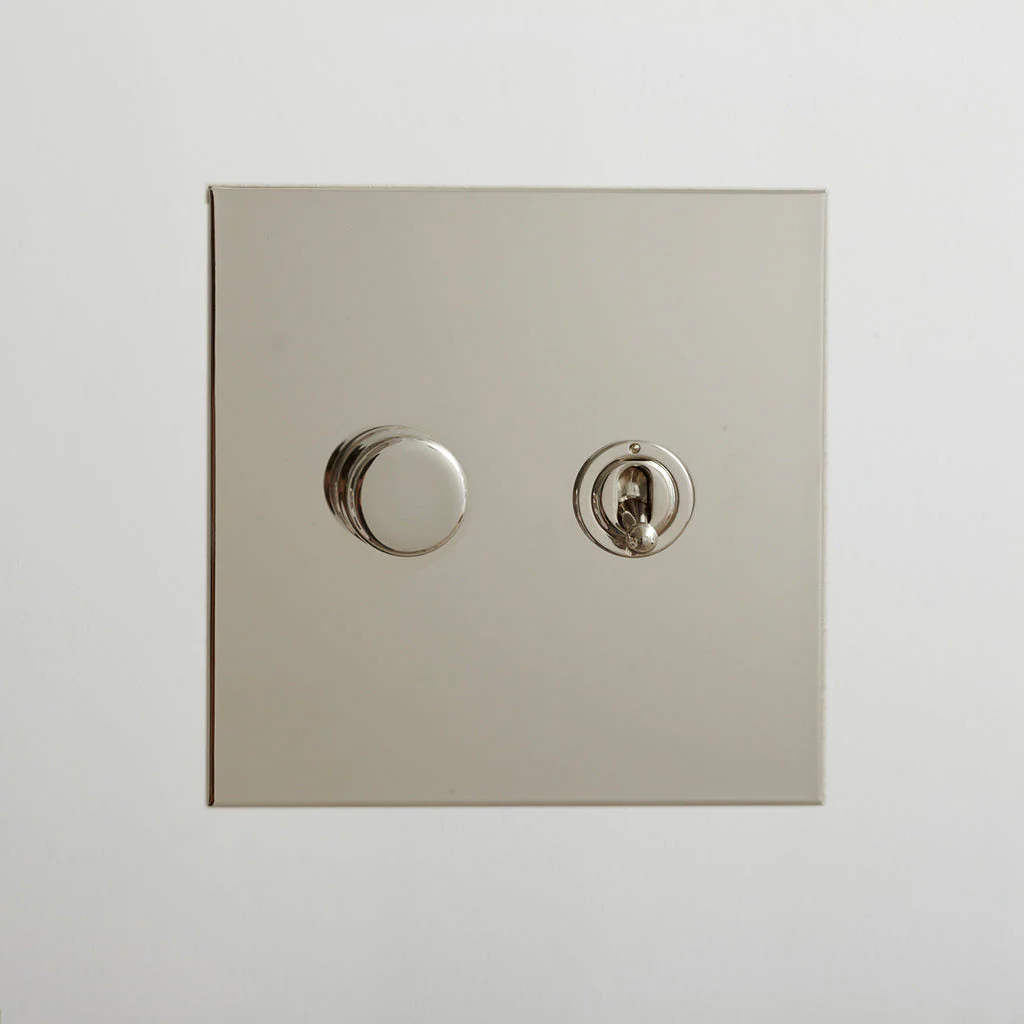

The Multi Set (2-Gang) by Forbes & Lomax is a combination rotary dimmer and toggle switch plate, blending 1930s brass-and-nickel switch aesthetics with modern dimming capability. Each set pairs a smoothly adjustable rotary dimmer with a toggle switch on a shared plate. Toggles and dimmers can be interchanged on the plates during installation to suit specific room configurations.

The rotary dimmer manages up to 120 W of LED lighting (or 300 W incandescent/halogen). Toggle switches are available in 3-way and single-pole configurations, rated at 15 A. Standard sets ship with 3-way toggles (can be wired single-pole). 4-way toggles available on request. In 3-way or 4-way circuits, dimming is possible from one location only — remaining switches function as non-dimming toggles.

For personalized configurations, email contact@cassonhardware.com with specifications, plans, or schedules for a customized lighting solution.

Specifications

• Switch diameter: Ø 20 mm (0.79")
• Knob diameter: Ø 20 mm (0.79")

Plate Sizes

• 1-Gang: W 70 mm (2.76") × H 115 mm (4.53")
• 2-Gang: 115 mm (4.53") × 115 mm (4.53")

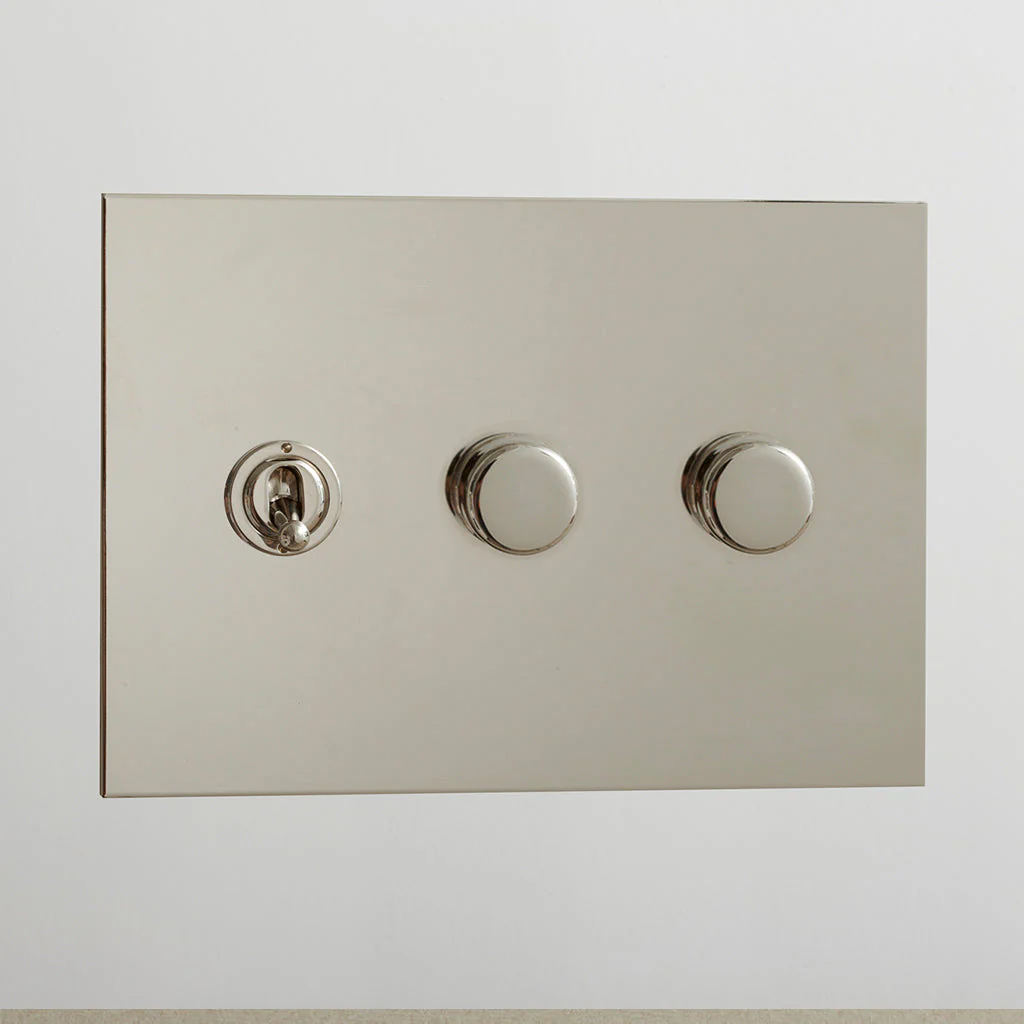

• 3-Gang: W 162 mm (6.38") × H 115 mm (4.53")

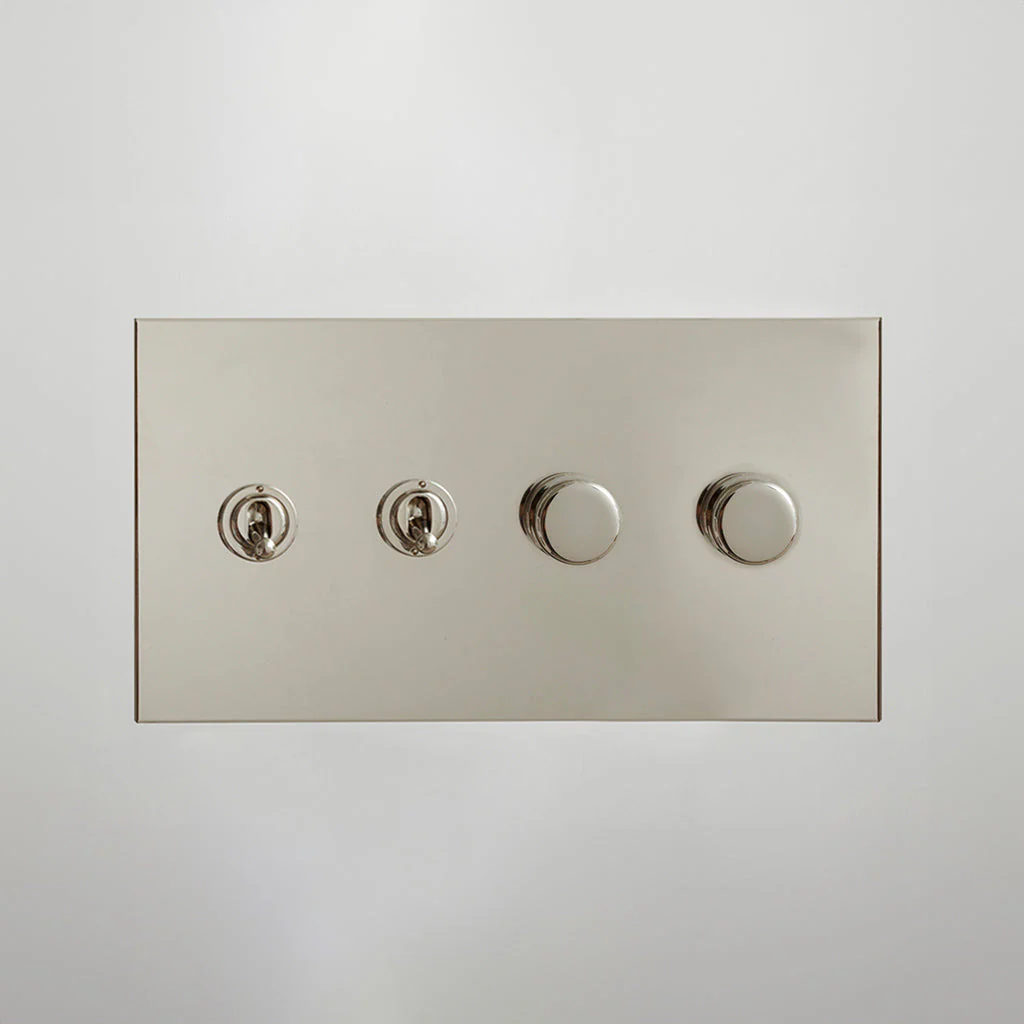

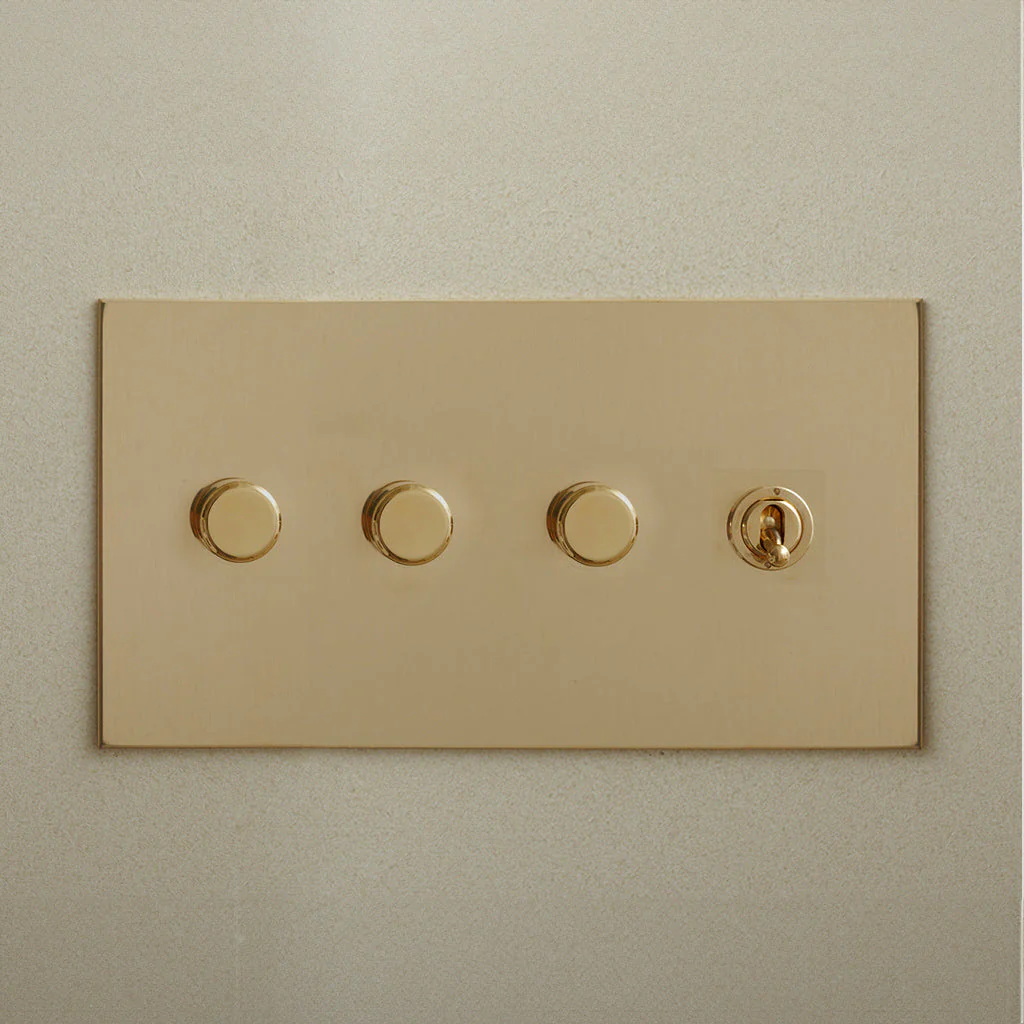

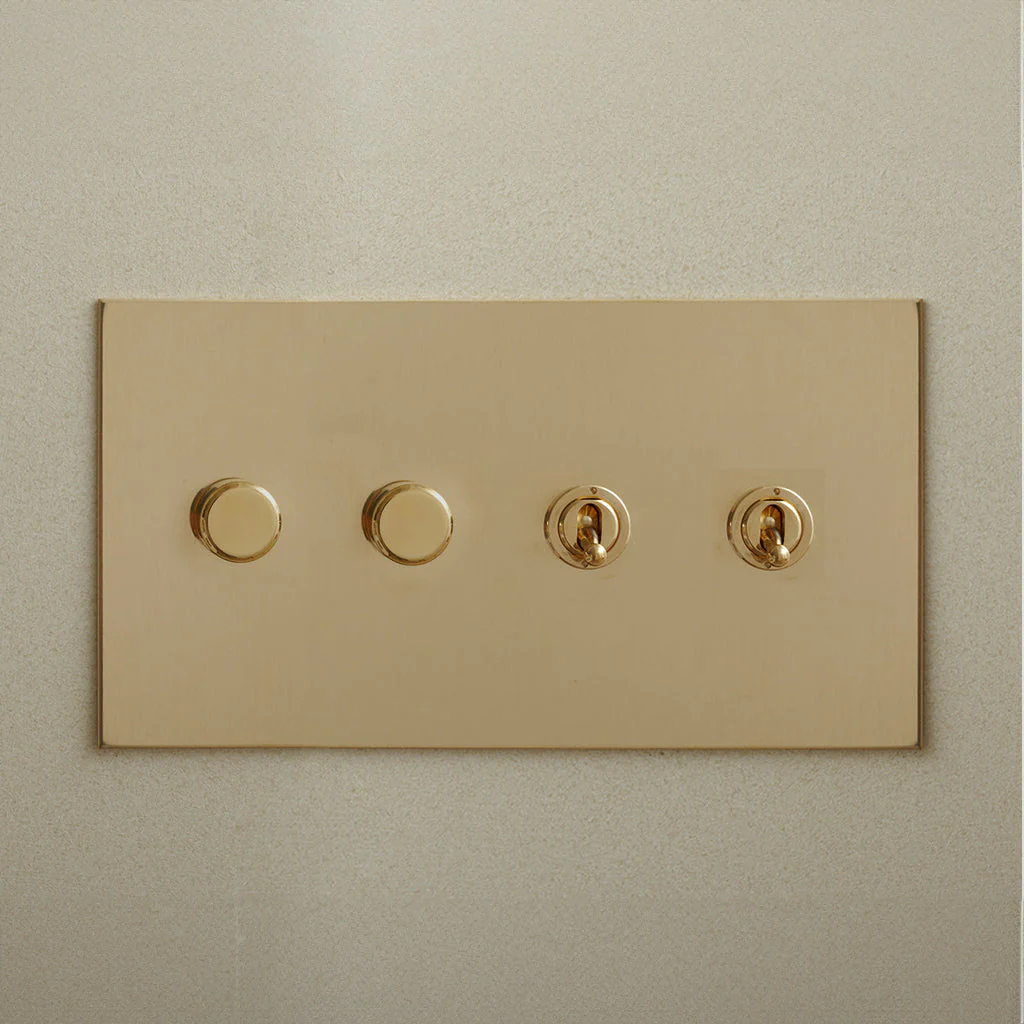

• 4-Gang: W 210 mm (8.27") × H 115 mm (4.53")

Electrical Ratings

• Line voltage — for conventionally wired installations
• Toggle: 3-way, 15 A (also works as single-pole)
• LED dimmer: Max 120 W LED or 300 W incandescent/halogen

Custom Quote Options

• Incandescent dimmer: Max 500 W incandescent/halogen
• 0–10 V (linear): Max 20 dimmable drivers
• Non-dimming: Max 720 W any load type (on/off only)

Important Notes

• TRIAC dimmer is compatible with LED and incandescent
• Toggle switches conform to UL 20 and are certified to CSA C22.2 No.111
• Toggle switches install into standard junction boxes; boxes must be recessed below the finished wall surface by at least 1/8"
• Rotary dimmers conform to UL 1472 and are certified to CSA C22.2 No.184
• LED dimmers are forward-phase TRIAC dimmers
• Review and ensure all certifications are applicable for local code
• Send full lighting specs to the sales team for compatibility review if unsure
• Must be installed by a licensed electrician

Application: Light-duty commercial, residential.

Materials

Available Finishes

• Unlacquered Polished Brass
• Aged Brass
• Nickel Silver
• Brushed Stainless Steel
• Antique Bronze
• Lacquered Brushed Brass
• Matte Brass

Unlacquered Polished Brass and Aged Brass are living finishes that change colour over time. Lacquered Brushed Brass is a non-living finish and will not change colour. Wipe clean with a dry, non-abrasive microfiber cloth. Avoid chemical or alcohol-based cleaners. Refer to the care guide below.
