Explore Pocket Door Privacy Set

The Explore Pocket Door Set (Privacy) by AHI is a stainless steel pocket door hardware set with a privacy lock function, designed for sliding doors, pocket doors, and sliding wardrobes. A discreet edge button activates the spring mechanism, transforming the flush pull into a convenient handle when the door is tucked into the pocket. Based in Montreal, AHI provides premium hardware at a competitive price point.

Specifications

• Door thickness: 35 mm (1-3/8") – 51 mm (2")

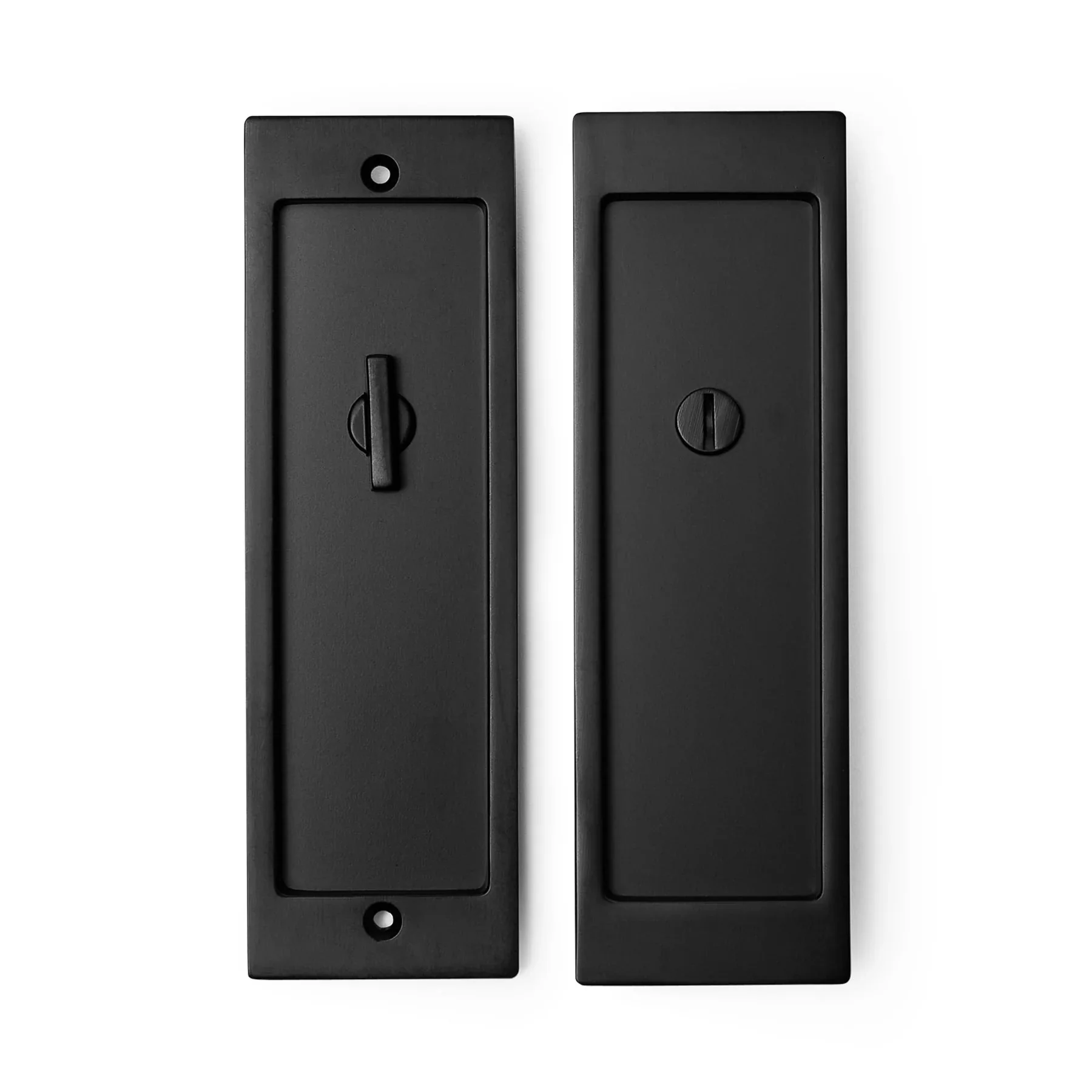

• Pull: H 190 mm (7.5") × W 60 mm (2.4")

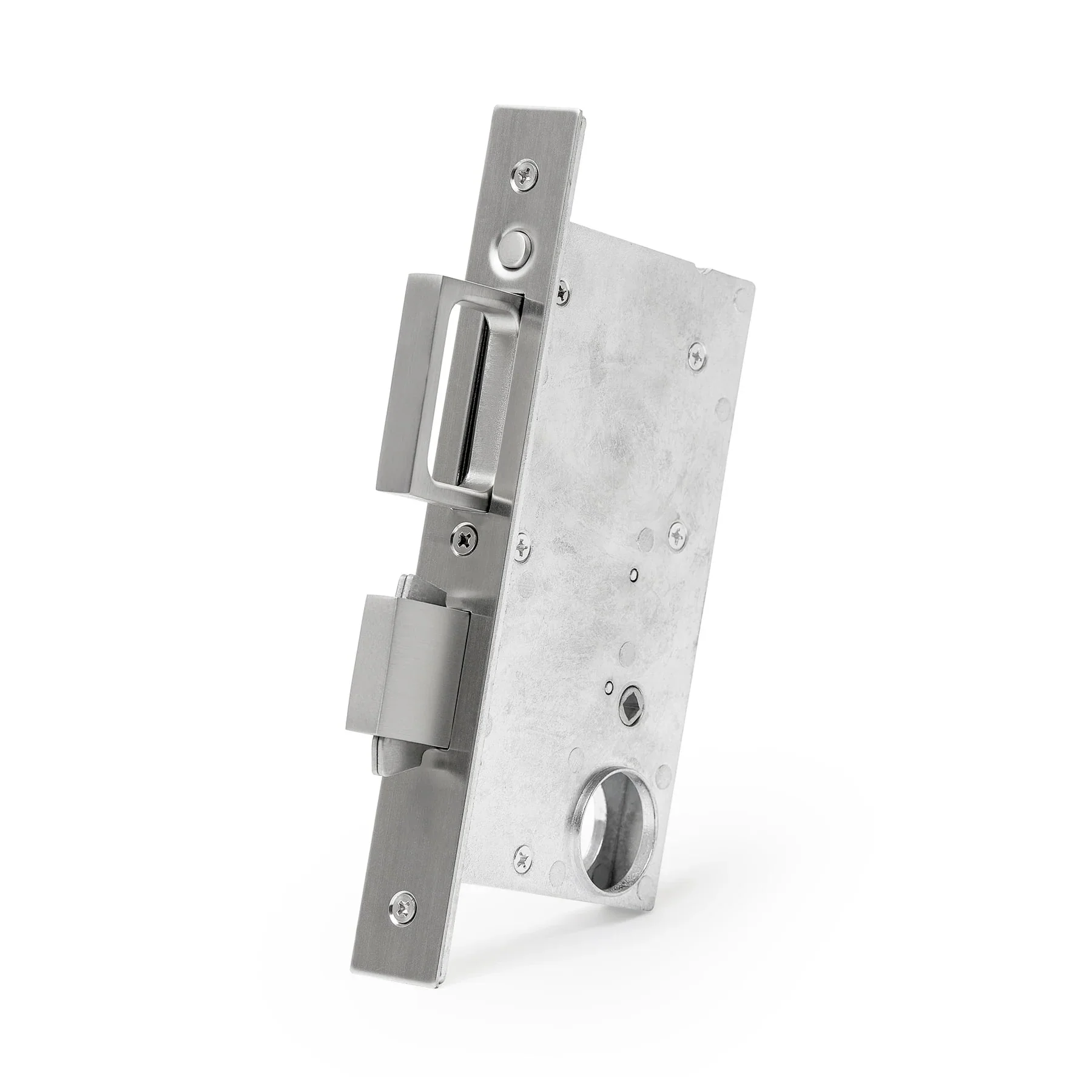

• Mortise: H 152 mm (6") × W 82 mm (3.2")
• Mortise faceplate: H 203 mm (8") × W 25 mm (1")

Installation

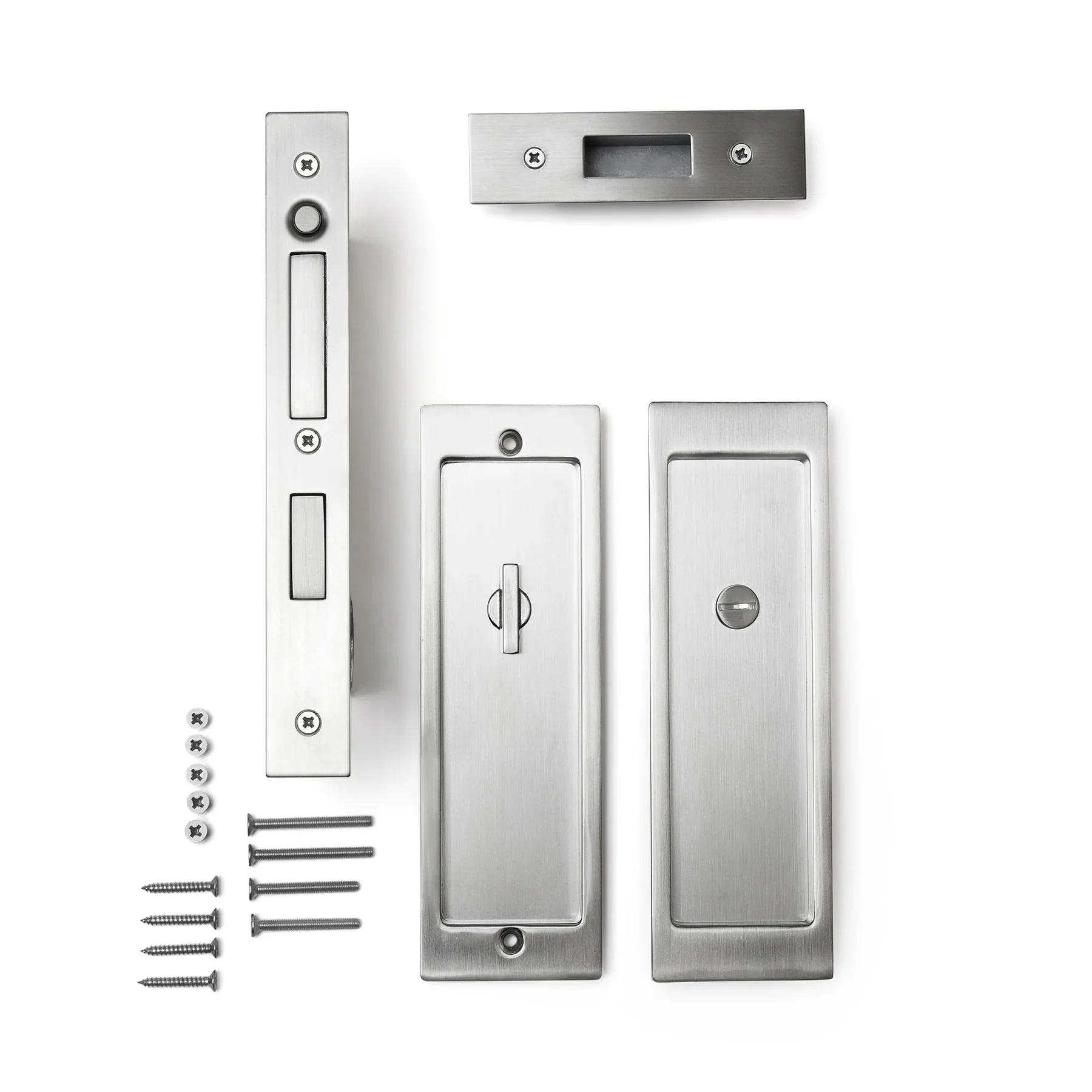

Each set includes two flush pulls, one mortise lock, and one strike. For double pocket doors: install the complete kit on one side; on the opposite side, install flush pulls and strike only to enable secure interlocking.

Materials

Stainless steel.

Product Downloads

• Explore Pocket Door Privacy Set Drawing 2D (PDF)
